We have 2 frames in stock currently, one small and one large.
For build kits, there are two base Park build kits and two base DH build kits. Each build kit is fully customizable and you're welcome to add or delete components from the build. Click here to learn more about the build kits.

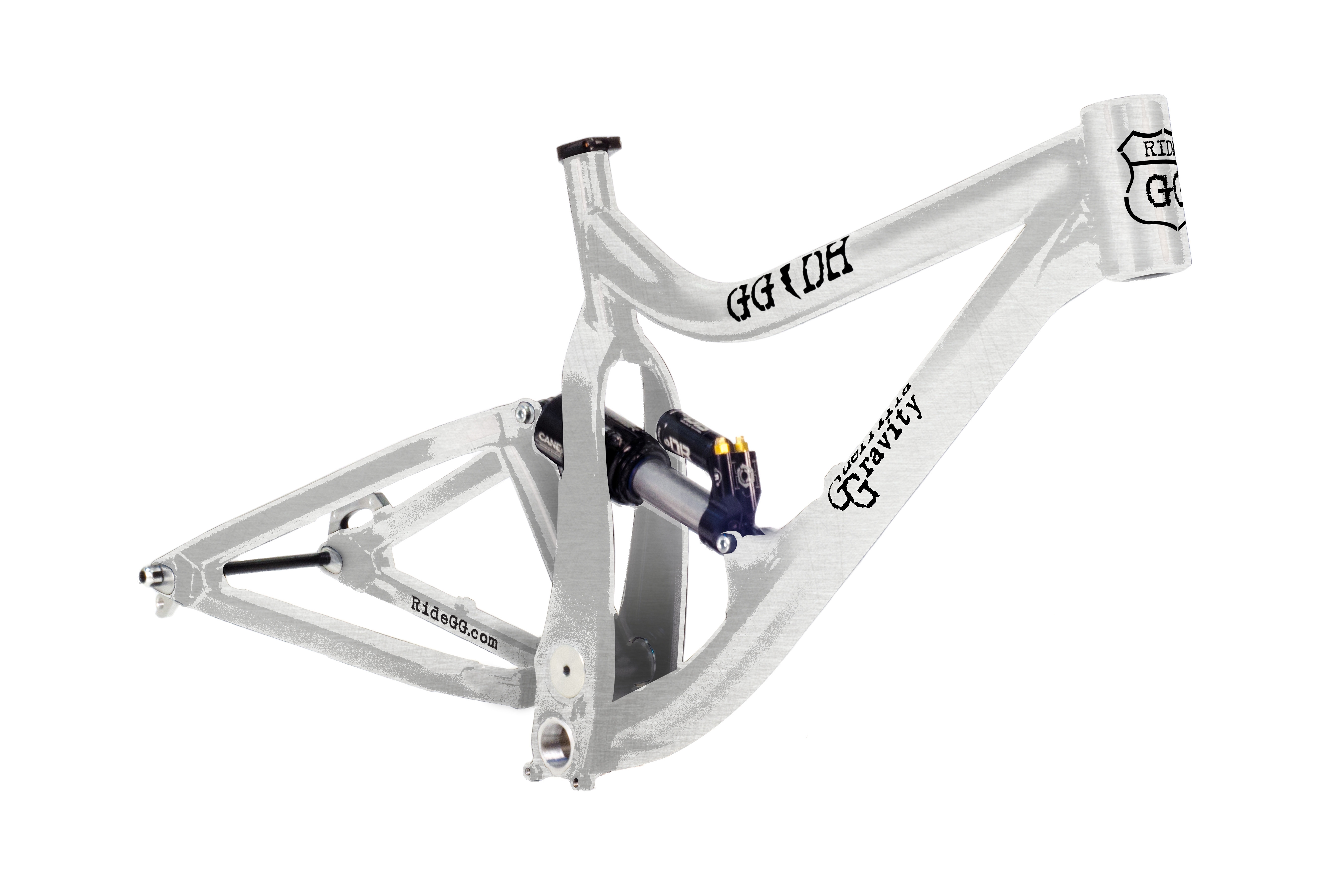

Frame only, raw: 1925
Frame with Fox Shox Van RC: 2095
Cane Creek Double Barrel upgrade: 230
Single coat powder coat: 125
Dual coat powder coat: 225
Don't forget, all Guerrilla Gravity frames and bikes come with access to the GG Rider Program.
Please email us at Bikes@RideGG.com with any questions about the frame, shipment, or payment!

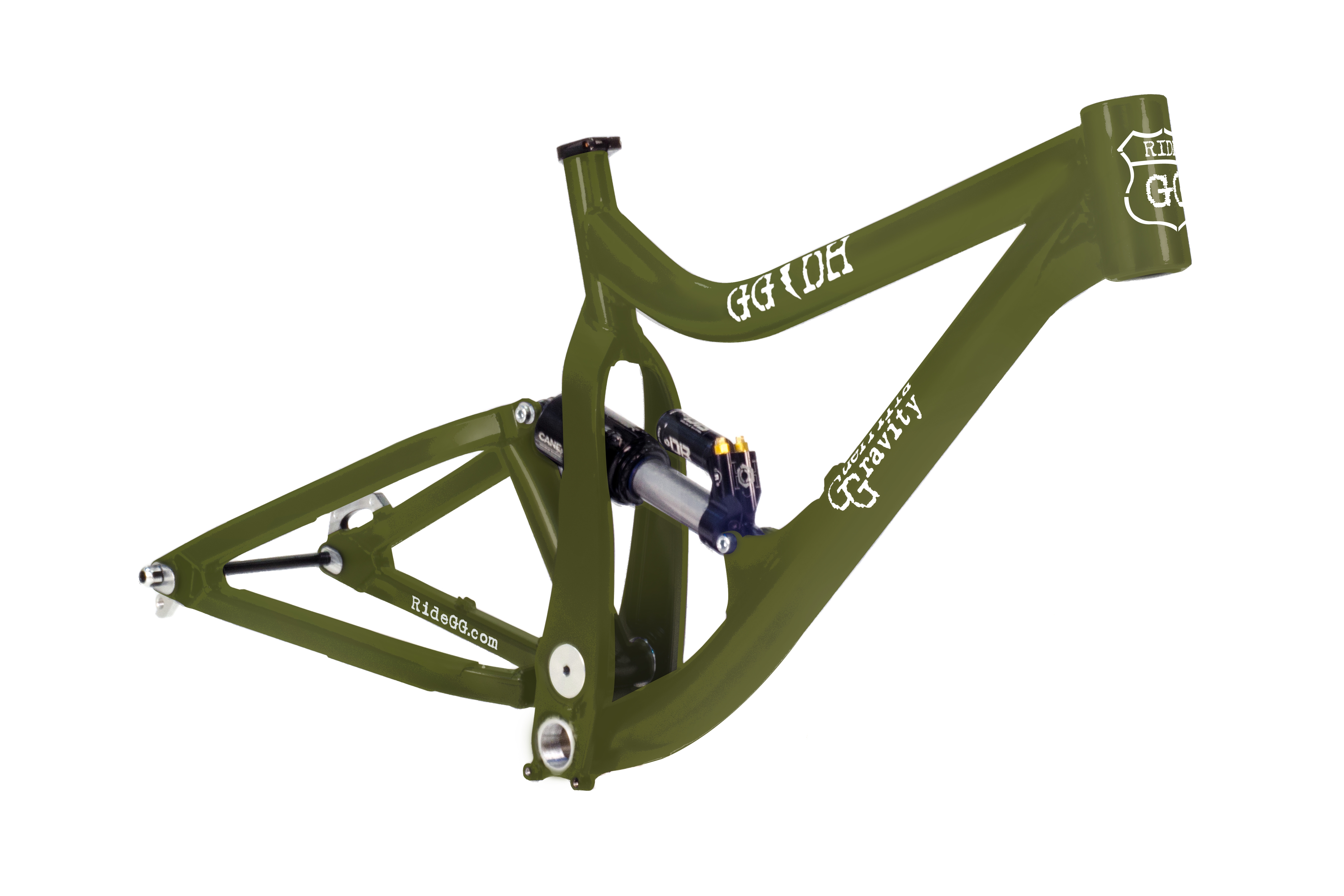

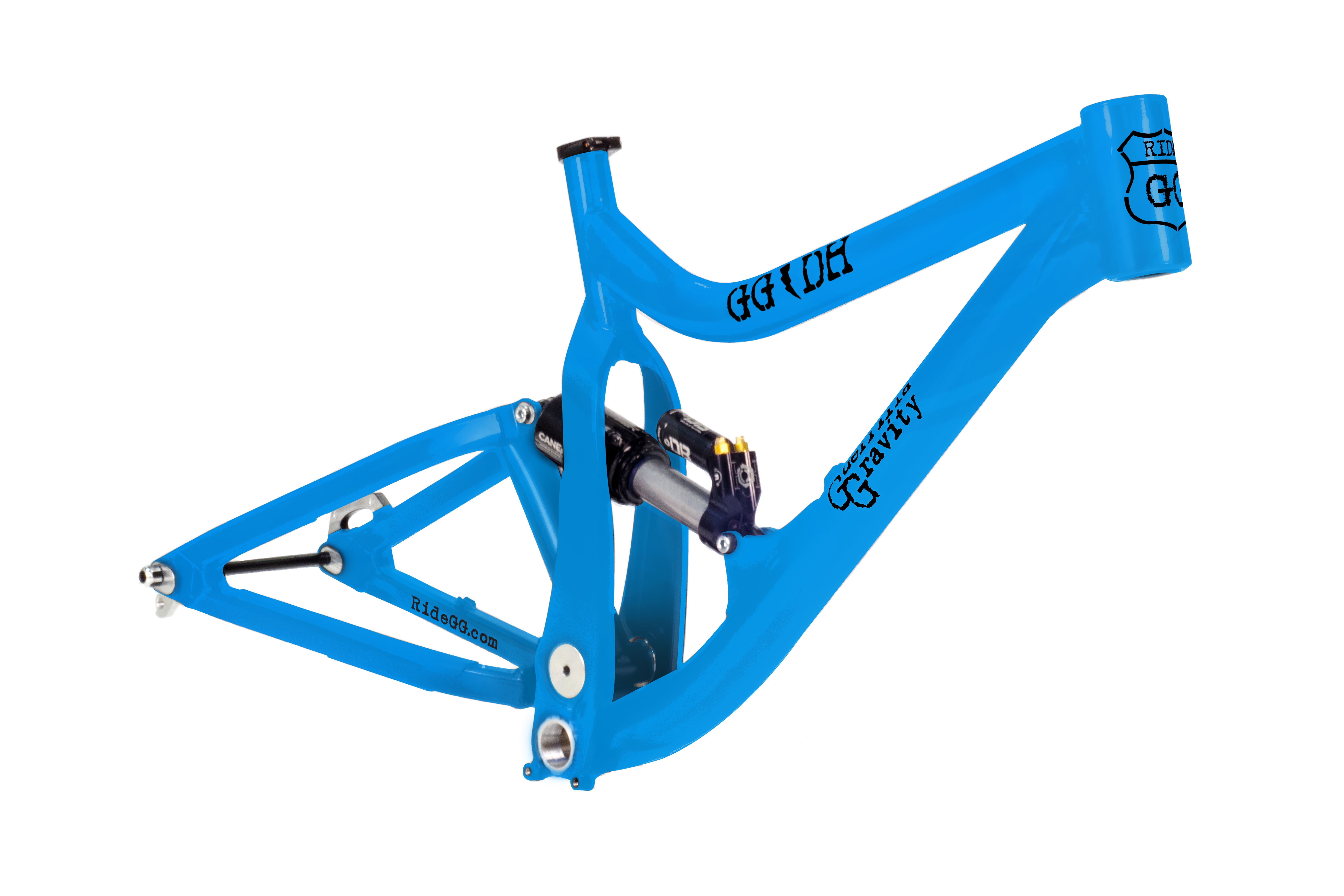

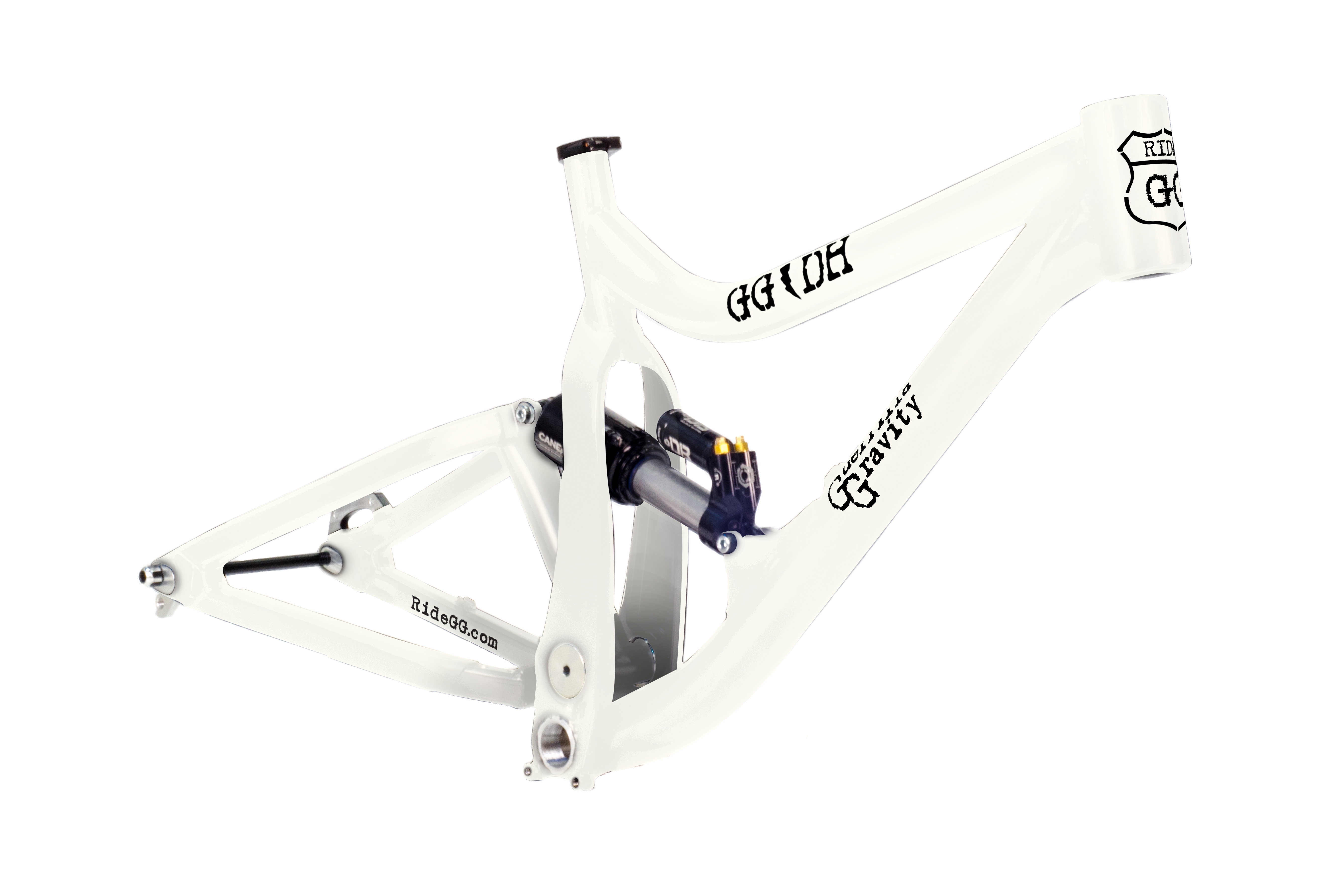

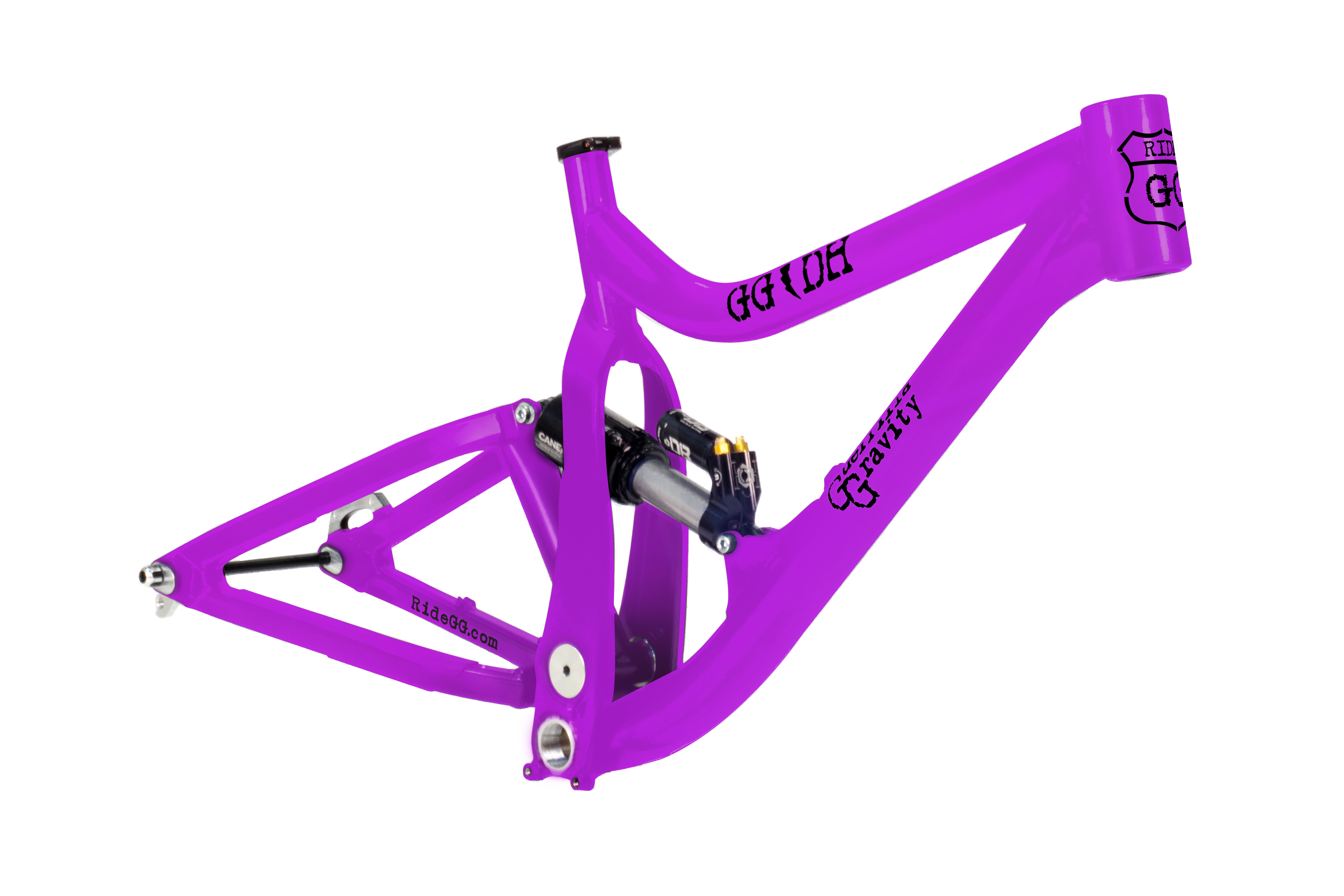

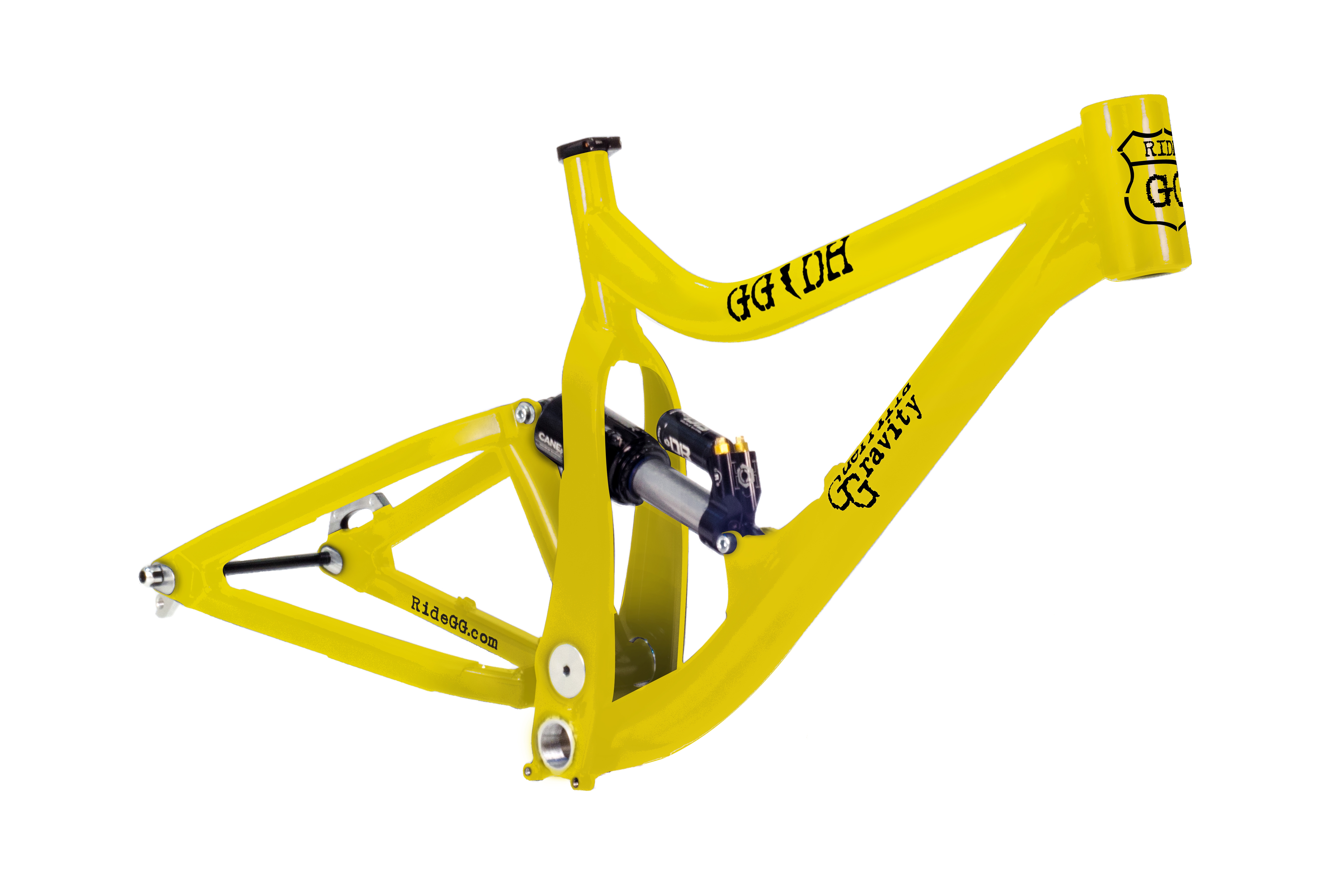

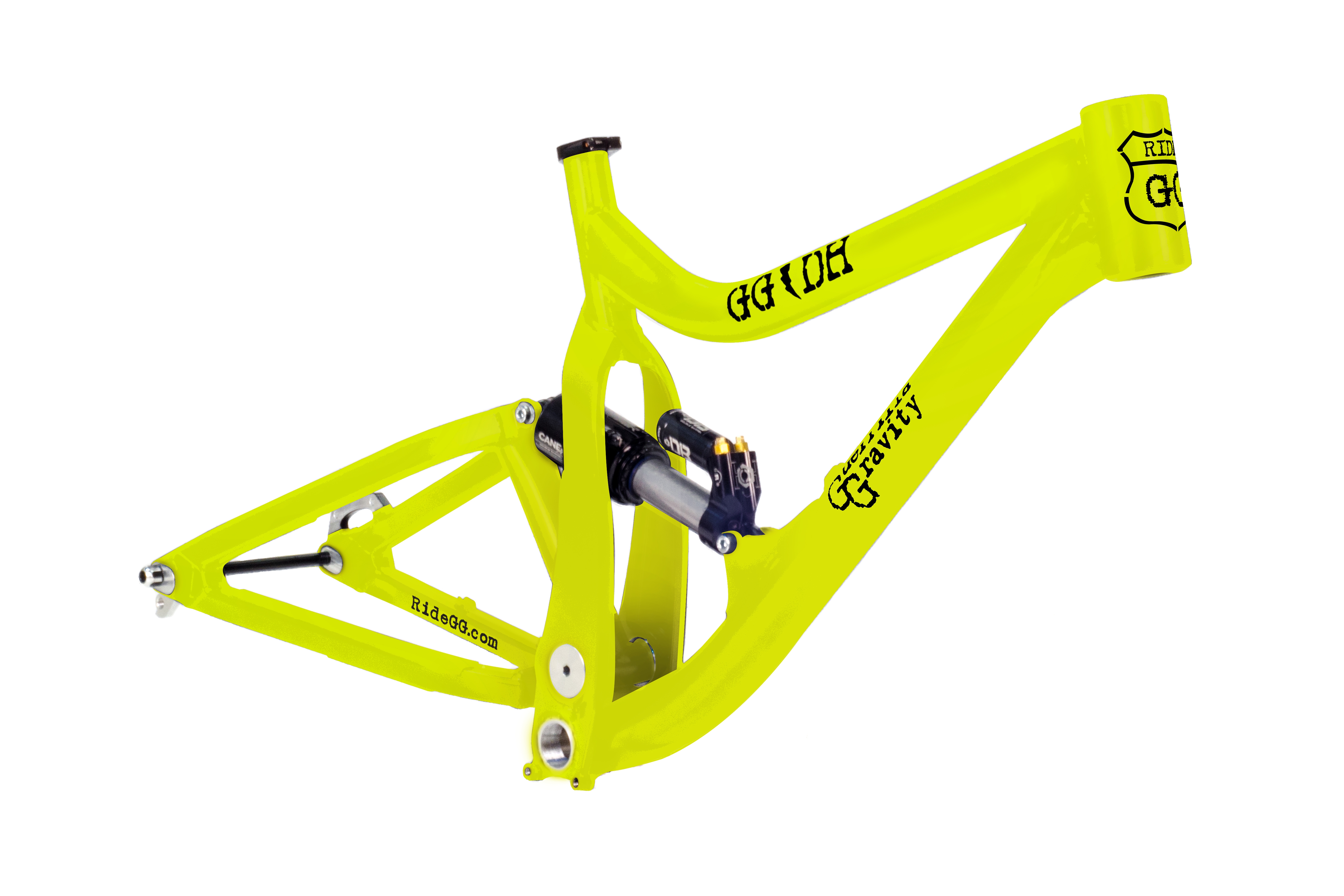

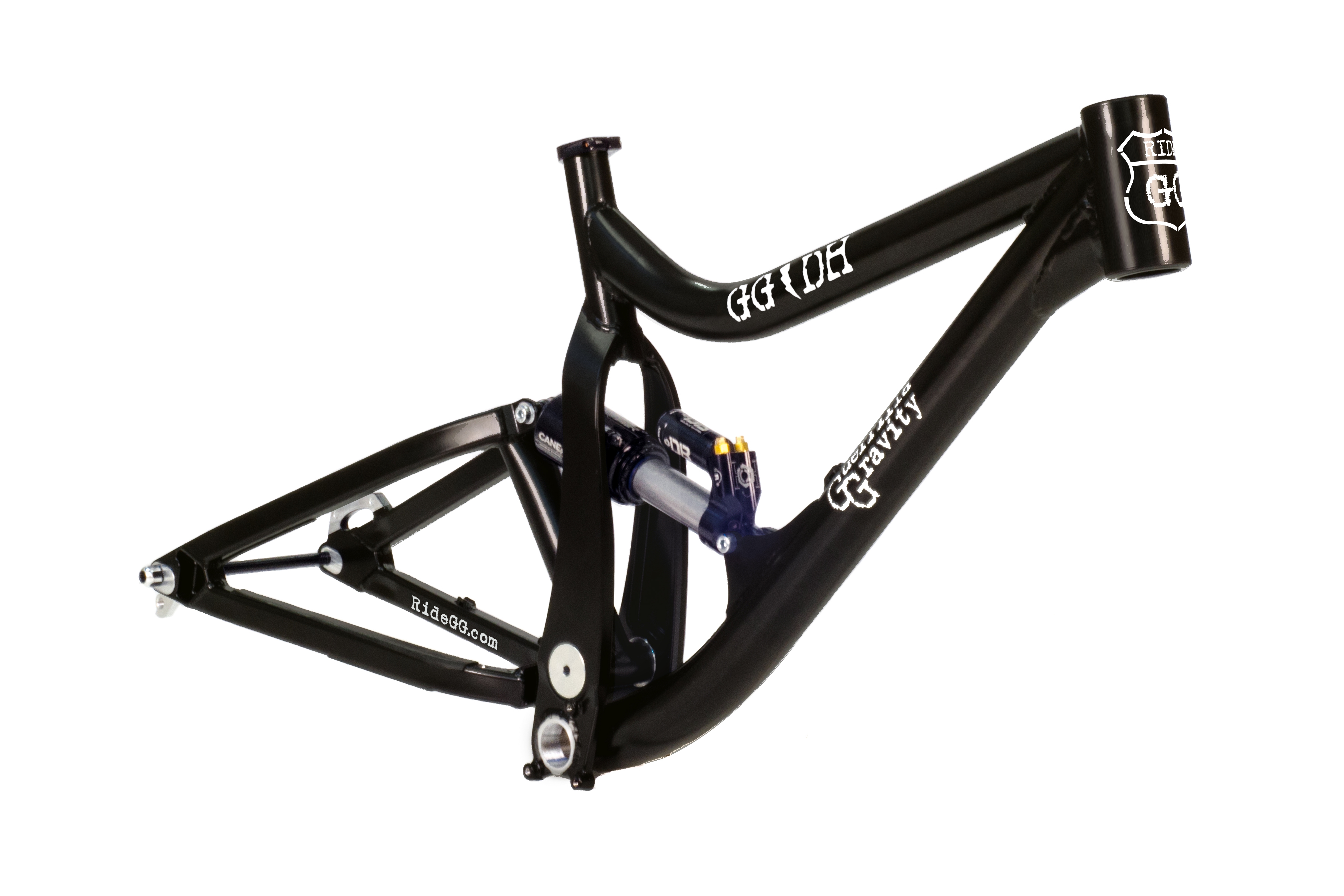

Frame Info & Specs:
- Rear Wheel Travel 8", 9.5" x 3.0" Shock
- Progressive Leverage Curve - No Blowing Through the Travel or Harsh Top Stroke Here!
- 1.5" Head Tube, Cane Creek Angleset Compatible
- Adjustable Chainstay Length via Axle Mount
- Adjustable Head Angle/BB Height via Shock Mount
- Designed With Frame Stiffness in Mind
- Massive 25mm Pivot Axle
- Zero Free Play Pivot and Axle Interfaces
- High quality Enduro dual-lip sealed bearings
Frame weight: 7.9 lbs. with hardware (size Medium, no shock)
Frame Geometry:
- Chainstay, Adjustable: 17" or 17.5"
- Head Angle, Low: 63.5 deg.
- BB Height, Low: 13.4"
- Head Angle, High: 64.2 deg.
- B Height, High: 13.9"
Small:
- Reach: 15.5"
- Effective Top Tube: 23.35"
- Wheelbase, Adjustable: 46.75" or 47.25"
Medium:
- Reach: 16.25"
- Effective Top Tube: 24.1"
- Wheelbase, Adjustable: 47.5" or 48"
Large:
- Reach: 17"
- Effective Top Tube: 24.85"
- Wheelbase, Adjustable: 48" or 48.5"
* Please note: Final wheelbase is dependent on fork offset and travel. These wheelbase numbers are calculated with a Manitou Dorado, which has 49.5 mm offset.
Sizing Recommendations:
- Small: 5'4" - 5'9"
- Medium: 5'9" - 6'1"
- Large: 6'1" - 6'6"
Frame fittings:
- 31.6 seatpost
- 34.9 seatpost clamp
- ISCG05 chainguide tabs
- 150 mm rear wheel spacing
- 83 mm BB spacing
